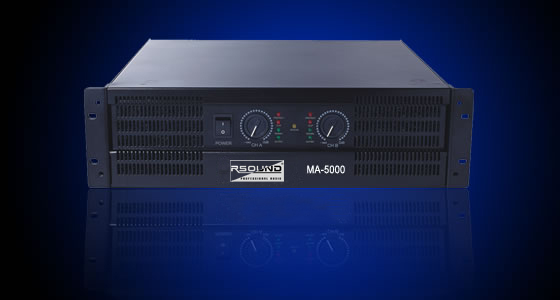

| MA5000 Technical data | |
| 8ohm STEREO POWER | 950WX2 |
| 4ohm STEREO POWER | 1350WX2 |
| 8ohm BRIDGE POWER | 2400WX2 |
| FREQUENCY RESPONSE | 20Hz-20KHz+0/0 dB (W/8) |
| THD+N | <0.03%@8ohm1KHz |
| S/N RATE | >95dB |
| SELW RATE | 35V/μS |
| DAMPING FACTOR | >360@8Ω |
| CROSSTALK | >60dB@8Ω 1KHz |
| INPUT IMPEDANCE | 20KΩ(BALANCE)/10KΩ(UNBALANCE) |
| INPUT SENSITIVITY | 0.775V |
| PROTECT | DC,SHORT CIRCUIT,OVER HEAT,SOFTSTART |
| CONTROL | FRONT PANCE:POWER SWITCH/CH1 Ch2 VOLUME |
| REAR PANEL MODE/GROUNDING | |
| HEIGHT | 3U |
| PACKING DIMENSIONS | 230X610X570MM |
| VOLUME | 0.07M2 |
| GROSS WEIGHT | 28KG |
